Self Operated Control Valve
Self-actuated Pressure Regulator Steam Reducing Control Valve With Condenser
Self-actuated pressure regulator steam reducing control valve with condenser
ZZY series Self-actuated flange self regulating pressure regulator reducing control valve is a actuator product which doesn’t need any additional energy, using medium own energy to achieve automatic adjustment. The biggest feature of this product is that it can work in non-toxic, airless places, saving energy, and pressure settings can be textile, machinery manufacturing and residential buildings and other industries for the automatic controlling of a variety of medium like air, liquid and steam. It can be used in the temperature of ≤350℃ if equipped with condenser.
Features of ZZY Self-operated steam pressure regulator valve
No need additional energy, equipment cost is low, suitable for explosive environments. Structure is simple, maintenance workload is small; Setting point is adjustable and adjusting range is wide, easy to adjust the user within the set range; Diaphragm actuator detection precision is higher than air cylinder actuator, action is sensitive, than the cylinder is the structure of high precision detection, action sensitive; Valve pressure balancing mechanism is equipped in valve, which makes the control valve has the advantages of sensitive response, precise controlling and high allowable pressure difference.

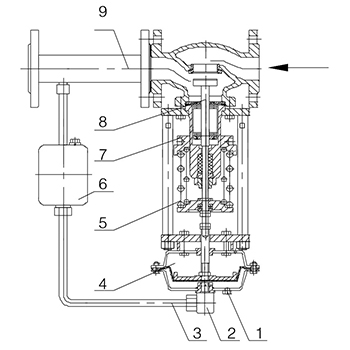

Self-actuated pressure regulator steam reducing control valve with condenser drawing.
Single seat self-actuated pressure regulator(after regulator)
1.Drain plug 2. Inlet plug 3. pressure line 4.Actuator 5.Spring 6. Condenser 7.Adjusting plate 8.Valve plug parts 9.downstream adapter tube

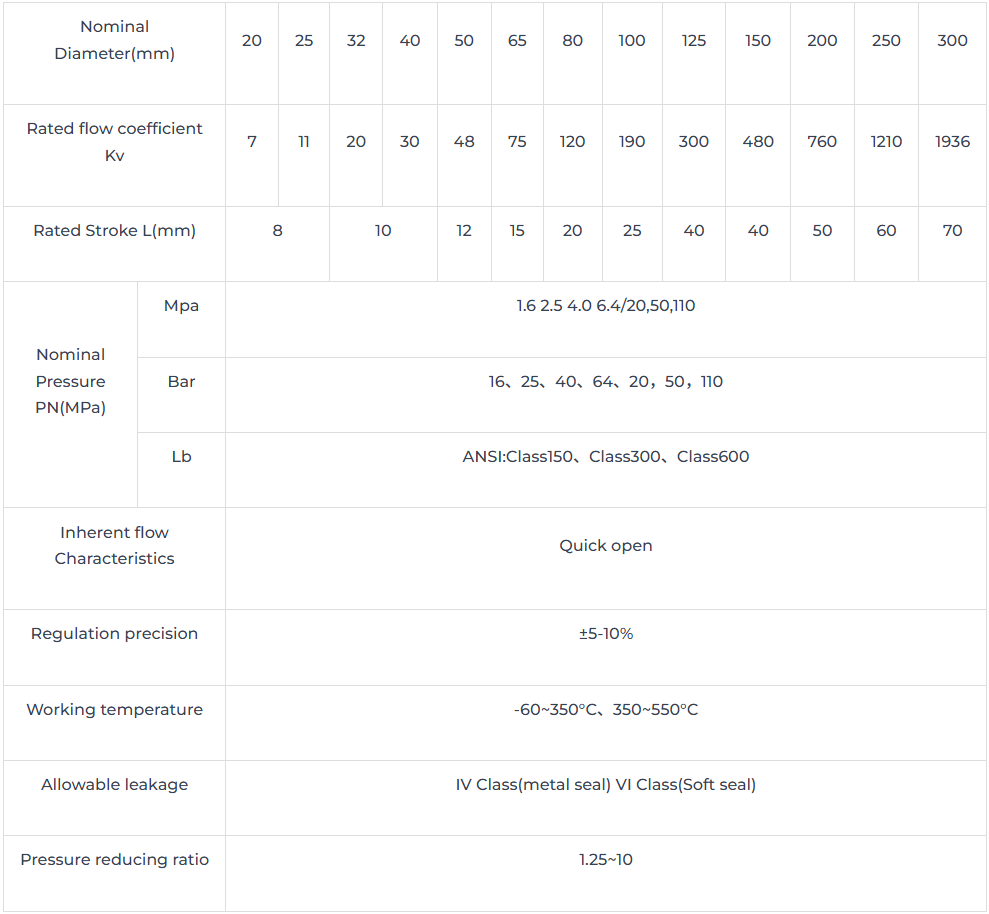

Self-actuated pressure regulator steam reducing control valve with condenser specification
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union,LianlianPay or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Contact us
For inquiries about product technology, product purchases,catalogs, and quality.
Electric Control Valve
Belz electric actuator three way control valve for conduction oil
Belz electric actuator three way control valve for conduction oil
Suitable for non-critical complex control tasks uses in applications such as industrial complexes, plant construction and process
technology installations for mediums such as cooling water, cooling brine, warm water, hot water and steam.
Offered as standard in the trim with Cast Iron Body, Stainless Steel Trim and the Spring-Loaded PTFE V-Ring unit complete with
electric actuator with integrated positioner unit. Options available upon request include different trim materials, parabolic
plugs with PTFE seats, miniature Kvs values, increased tightness on seats i.e. Class IV leakage rate.
If you are not sure of the size, you require for your process please do not hesitate to get in contact with our Technical Sales
team who will be able to size the correct valve for your process.
Key Features:
* Flanged Connection
* Cast Iron Body & Stainless Steel Trim
* Spring Loaded PTFE V-Ring Unit
* Electric Actuator (90-264V AC 47-63Hz), 0-10V or 4-20mA Input
* Up to -10 to +220°C Temperature Rated
* DN15 to DN100, Kvs from 1 to 100
* 50:1 Rangeability
Specification
| Control valve Body type: | 3-way casting globe type |
| Spool type: | 3-way double seat spool |
| Nominal size: | DN20~300,、 NPS 3/4〞~ 12〞 |
| Nominal pressure: | PN16 ~ 100、 CLASS 150LB ~ 600LB |
| Connection: flange: | FF、RF、MF、RTJ |
| Welding: | SW、BW |
| Flange dimension: | According to to IEC 60534 |
| Electric 3-way control valve Bonnet type: |
Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type |
| Packing: | V type PFTE packing, flex. graphite packing, etc. |
| Gasket: | Metal graphite packing |
| Electric 3-way control valve Actuator: | Electric:373 series smart actuator |
Belz electric actuator three way control valve for conduction oil performance
| Electric 3-way control valve Flow characteristic | Linear, percentage | |
| Allowable range | 30: 1 | |
| Rated Cv value | Percentage / linear CV8.5~1280 | |
| Electric 3 way control valve Allowable leakage |
Metal seal: IV grade（0.01% rated capacity） Leakage standard: GB/T 4213 |
|
| Electric 3-way control valve Performance | ||
| Intrinsic error (%) | ±1.0 | |
| Return difference(%) | ≤1.0 | |
| Dead zone(%) | ≤1.0 | |
| Difference from beginning to end point(%) | ±2.5 | |
| Rated travel difference(%) | ≤2.5 | |
Belz electric actuator three way control valve for conduction oil technical parameter
| Seat diamter（mm） | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| Rated flow coefficient, CV | 8.5 | 13 | 21 | 34 | 53 | 85 | 135 | 210 | 340 | 535 | 800 | 1280 | |
| Nominal size | Travel | Option flow coefficient Cv（★standard ●recommended） | |||||||||||
| DN25 | 16 mm | ★ | |||||||||||
| DN32 | 25 mm | ★ | |||||||||||
| DN40 | ● | ★ | |||||||||||
| DN50 | ● | ● | ★ | ||||||||||
| DN65 | 40mm | ★ | |||||||||||
| DN80 | ● | ★ | |||||||||||
| DN100 | ● | ● | ★ | ||||||||||
| DN125 | 60mm | ★ | |||||||||||
| DN150 | ● | ★ | |||||||||||
| DN200 | ● | ● | ★ | ||||||||||
| DN250 | 100mm | ● | ● | ★ | |||||||||
| DN300 | ● | ● | ★ | ||||||||||
