Pneumatic Tank Bottom Valve
CF8 stainless steel pneumatic tank bottom valve
CF8 stainless steel pneumatic tank bottom valve
ZMQF/ZSQF Type Pneumatic Tank bottom valve
Feature:
1.One-piece design, flow channel have no block、small flow resistance、No dead zone
2.The flow channel surface sand blasting, Smooth wear-resisting
3.The flow channel surface paint Teflon,meet Sanitary standard
4.The sealing face material is PTFE,reach zero leakage
5.The valve have hand wheel,so when if the gas source failed it still work
pneumatic bottom tank valve(referred to as Tank valve, Angle bottom valve, Bottom drain valve, Flush mount valve etc) are designed to provide drainage and dead space free shutoff for reactors, vessels, autoclaves and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself.
1. This range of manual control tank bottom angle valve is manufactured in y type integrated structure;
2. Air cylinder operation is usual for saving labor;
3. Short stroke for open/close operation;
4. Both Rising Disc Type (the valve is opened into tank) and lowering disc type ((the valve is opened into valve) can be designed by Quanshun valve ;
5. The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.
6. Crust breaking for disc rising type.
Technical Parameters
Size: 2”~14” DN50~DN350
Pressure：Class 150~Class 600 PN1.0~PN16
Body material ：WCB,CF8, CF8M, CF3, CF3M etc
Connection Type：Flange, weld etc.
Driving method : Manual ,pneumatic

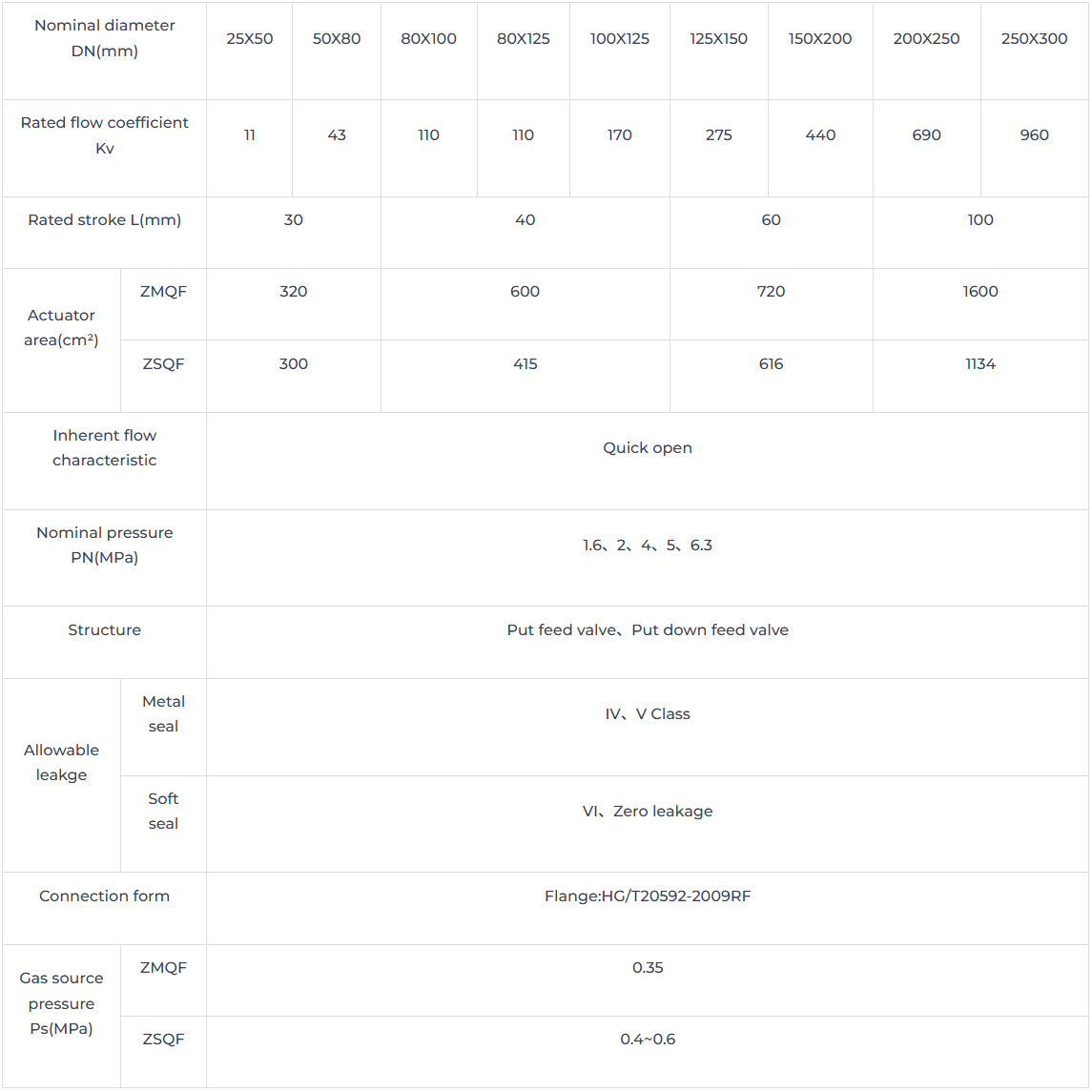

Main specification and technical parameter
