Electric Butterfly Valve
Carbon steel body Electric Rubber Lined butterfly valve
Carbon steel body Electric Rubber Lined butterfly valve
Electric rubber lined butterfly valve technical parameter
Nominal diameter: DN50~1200mm,
Nominal pressure: 1.0Mpa, 1.6Mpa, 2.5Mpa,150LB
Connection: clamping connection, flange connection
Valve body form: straight cast butterfly valve
Spool type: butterfly plate type
Flow characteristics: approximate fast opening
Sealing structure: wafer butterfly valve, flange butterfly valve
Seal: Metal hard seal
Sealing ring: body carbon steel, stainless steel manufacturing from grinding
Valve plate quality: Carbon steel (WCB), stainless steel 304, stainless steel 316, etc
Body material: Carbon steel (WCB), stainless steel 304, stainless steel 316, etc
Scope of application: gas, water, steam, oil, corrosive medium, etc
Range of action: 0~90 degrees
Leakage quantity: according to GB/T4213-92, is KV worth 10-4
Applicable temperature: -9°C~+120°C
Actuator: Multi-turn electric mounting, fine small electric mounting, QT intelligent electric mounting (with explosion-proof type and handwheel device)
Power supply voltage: AC220V, AC380V
Control form: switching type (two-position switching control), intelligent control type (4-20mA analog signal control)
Ambient temperature: -30°C~+70°C

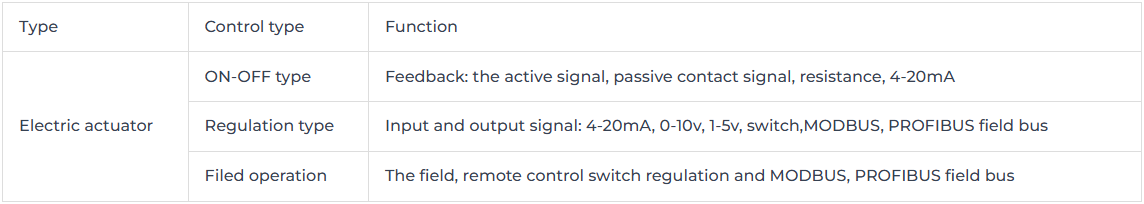

Electric rubber lined butterfly valve electric actuator:
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V；
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\380V\110V\24V、DC12V\24V etc；Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union,LianlianPay or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
