Electric Ball Valve
4~20mA Water Flow Control Electric Actuator Ball Valve
4~20mA Water Flow Control Electric Actuator Ball Valve
Features
1. Voltage: 24VAC, 110VAC, 220VAC, 380VAC, 24VDC
2. Type: On-off, regulating

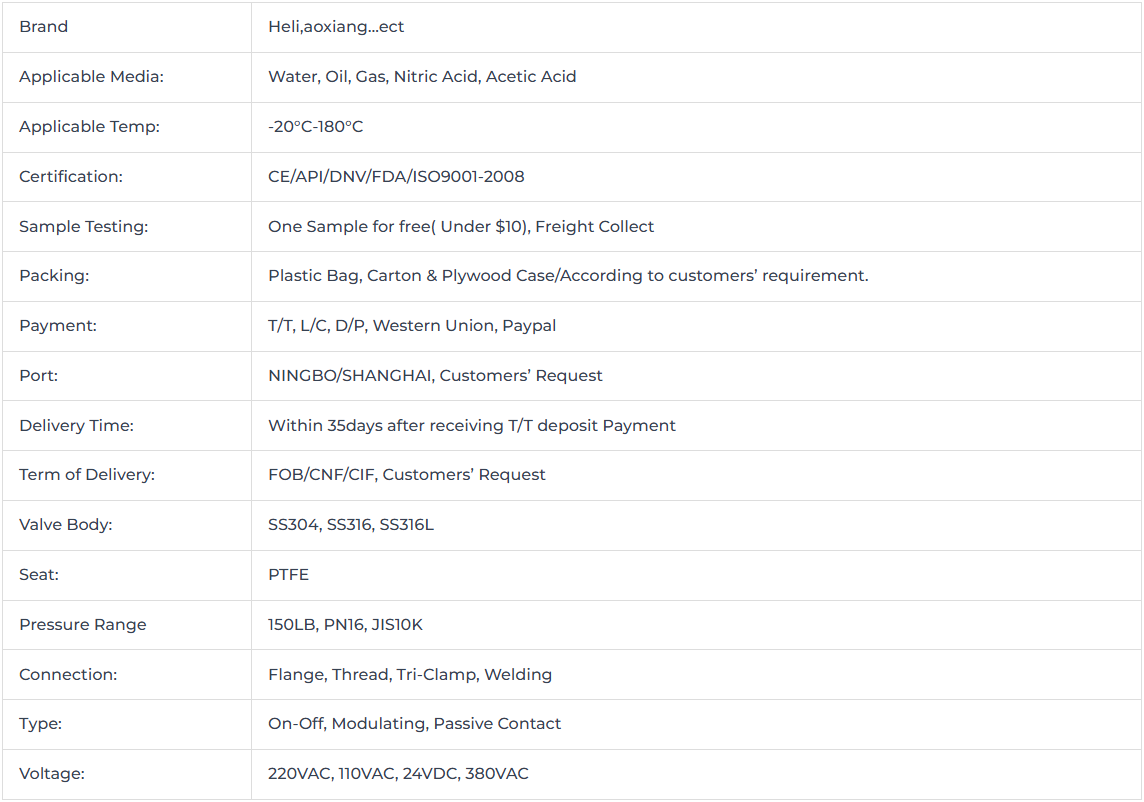

Specifications
Electrical Thread Ball Valve
1). Nominal diameter:1/2inch-4inch
2). Pressure range: 0-16-40bar
3). Medium Temperature:-10°C~+180°C
4). Environment Temperature: -10°C~+60°C
5). Body material: Stainless steel
6). Sealing material: PTFE
7). Body of actuator: WCB,CF8,CF8M,CF3,CF3M
8). Power: AC110~380V; DC24V
9). Feature: On-Off type, regulated type
10). Manufacturing standard: GB,BS,ANSI
Torque range: 100~2,300N.m
Switching time: 19~47 S
Ambient temperature : -25ºC~+70ºC
Control method: On and off / modulating type
Weight: 11~36KG
Protection : IP67, (IP68 optional)
Voltage: Single phase: AC110V/AC220V/AC24V
Three-phase:AC220V/AC380V
Direct current (DC):DC24V
The Electric Actuator is distinguished by its special design, beautiful appearance, great performance and long-time operation. The rotary valve electric actuator will win customers’ hearts by its supreme performance.
1). Powerful function: Modulating, proportional, on-off, and various output signal;
2). Small Size: 35% smaller than other of the same kind;
3). Light Weight: 35% lighter than other of the same kind;
4). Beautiful Appearance: Die-casting aluminum alloy cover can prevent disturbance of electromagnetic’
5). Precision and Wear-resistance: Integration of worm wheel and output axle avoids the separation among keys and the forged brass alloy material is featured by high strength and good wear-resistance;
6). Safety Guarantee: Tested by AC 1500V and can withstand it; F-grade insulation motor guarantees safe operation;
7). Easy to Form Complete Set: 110V, 220V, 380V alternate current and direct current are all available for simple connection;
8). Easy Application: No oil or point inspection is needed; waterproof, antirust and optional installation angle;
9). Protection Appliance: Double limits, over-hot protection, overload protection;
10). Various Motion Time: 9s, 13s, 15s, 30s, 50s, 100s(Set Before Delivery);
11). Antirust and Anti-corrosion: Whole machine support, coupler and screws are made of stainless steel;
12). Intelligent Numerical Control: Intelligently control module is built in the actuator body so that there is no need to mount positioner. Digit setting and adjusting, highly accuration and self-diagnosis can be realized.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union,LianlianPay or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
