Electric Ball Valve
220V Electric actuator three way carbon steel ball valve
220V Electric actuator three way carbon steel ball valve
220V Electric actuator three way carbon steel ball valve Product Range:
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211
220V Electric actuator three way carbon steel ball valve technology standard
Design standard: API 6D , ASME B16.34
Structural length: API 6D, ASME B16.10
Test & inspection :API 6D, API 598
Pressure and temperature:ASME B16.34
Flange ends :ASME B 16.5 , JB/T 79
The size of valve connecting flange can be designed according to customer’s requirement.

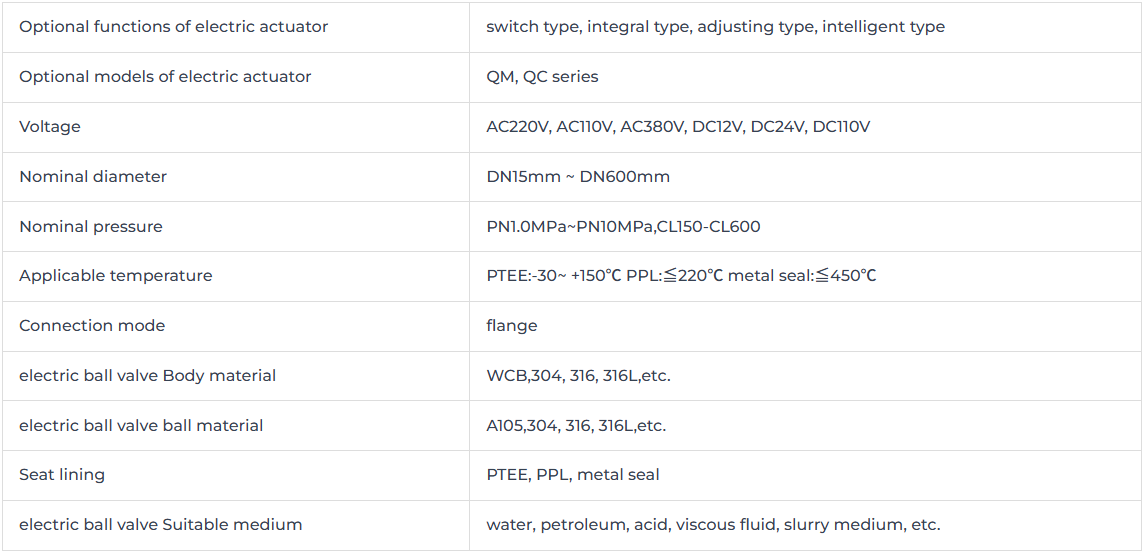

220V Electric actuator three way carbon steel ball valve technical parameter:
220V Electric actuator three way carbon steel ball valve technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 “incoming line lock
220V Electric actuator three way carbon steel ball valve selection:
(1) Ball valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Electric actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off)
