Control Valve Accessory
Intrinsic Safety Smart Positioner For Straight Travel Control Valve
Intrinsic safety smart positioner for straight travel control valve
TS800 series Smart Valve Positioner controls the valve opening degree in response to an input signal of 4~20mA from controller or control system. Built-in microprocessor cna control the valve opening degree accurately and realizes the functions of auto set, PID control, HART communication, etc.

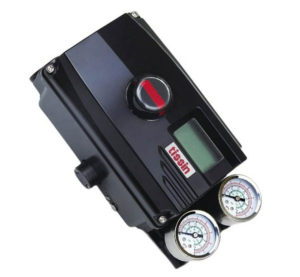

TS800 Series Positioner
Characteristics
| Nozzle/baffle type resisting moisture, oil and dust. |
| LCD display enables users to monitor the positioner status. |
| PTM module and HART module is available. |
| Various options for flow output setting: Linear, Quick Open, Equal Percentage and Users set (16 point). |
| Easy for calibration and parameter setting. |
Technical Parameters
| ITEM / MODEL |
MSP-31L |
MSP-31R |
|
| Input Signal |
4 to 20mA |
||
| Supply Pressure |
0.14 to 0.7MPa |
||
| Stroke | 10 to 150mm | 0°to 90 | |
| Impedance |
Max.500Ω / 20mADC |
||
| Air Connection |
PT(NPT)1/4 |
||
| Gauge Connection |
PT(NPT)1/8 |
||
| Conduit |
PF1/2 (G1/2) |
||
| Repeatability |
±0.3% F.S. |
||
|
Ambient |
Operating |
-30 to 85℃ （-22 to 185°F） |
|
| Explosion-proof |
-40 to 60℃(T5) / -40 to 40°℃(T6) |
||
| LCD Operating |
-30 to 85℃ （-22 to 185°F） |
||
| Linearity |
±0.5% F.S. |
||
| Hysteresis |
±0.5% F.S. |
||
| Sensitivity |
±0.2% F.S. |
||
| Air Consumption |
Below 2LPM (sup=0.14MPa) |
||
| Flow Capacity |
70LPM (SUP=0.14MPa) |
||
| Output Characteristics |
Linear, Quick Open, EQ%, User Set(16 point) |
||
| Material |
Aluminum Die-casting |
||
| Enclosure |
IP66 |
||
| Explosion Proof |
ExiambIICT5/CT6 |
||
